SNMP Network Discovery

Under Administration > Admin home - Utilities click on the SNMP Import tool

Screenshot 2019-05-23 12.31.55.png


Screenshot 2019-05-23 12.40.00.png

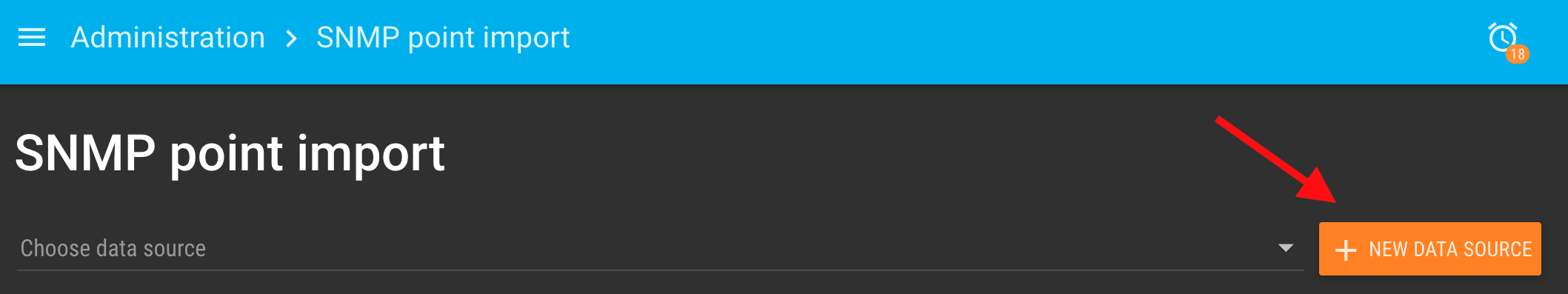

Enter your Scan Settings and add a Data Source for the desired device

Screenshot 2019-05-23 12.45.41.png

Now go back to the SNMP point import tool and select the device from the data source list. If you have a mid file you can upload it and then click START SNMP WALK.

Screenshot 2019-05-23 12.48.46.png

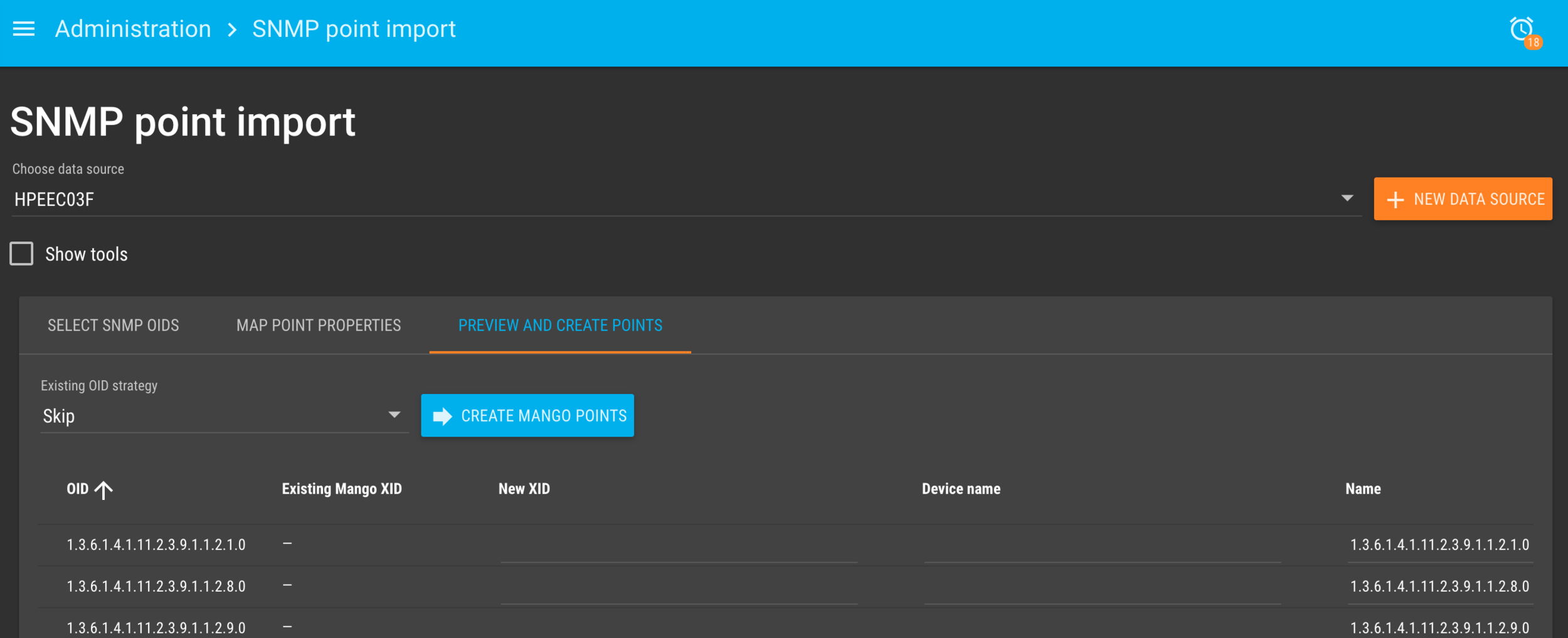

Select the data points you want to add and proceed to the PREVIEW AND CREATE POINTS tab. Click CREATE MANGO POINTS to add them.

Screenshot 2019-05-23 12.50.58.png

After the points are added you can use the Bulk Editor to modify the points further.
